| Referencia |
Código |
Descriçãp |
| 1 |
30013106 |
CH FR 1.2X500X510 BR-400 |
| 1.1 |
30020413 |
CONJ BORNE LIGACAO NYLON BR-325/425/450 BALMER |
| 1.1.1 |
30172003 |
PO LATAO M12 X 1.75 CH19 |
| 1.1.2 |
30007302 |
ARRUELA LISA ZB 13.3X40X2.0 |
| 1.1.3 |
30067810 |
ISOLADOR BORNE NYLON RETIFICADORES BR325/425/450 |
| 1.1.4 |
30007301 |
ARRUELA LISA ZB 1/2”X30X3.0 (92P /KG) |
| 1.2 |
30018501 |
CHAVE MG-40 CS/RT32 TRIPOLAR |
| 1.3 |
30144001 |
PA FE 6 (1.0) X 12 LT FLG FSI (LAT. MIG) |
| 1.4 |
30289900 |
TUBO RED. 3/4” X 1,2MM CABO ALÇA BR425/450 - PÇ 1MT |
| 2 |
30016410 |
CH SUPERIOR 1.20X650X508 BR-400 |
| 2.1 |
30104001 |
PA OLHAL M12 DIN580 GENERAL TOOLS |
|
3
|
30015210 |
CH LAT 1.20X735X474 BR-400 |
| 3.1 |
30012811 |
CH ALTERACAO VOLTAGEM- FECHAM BR's E S300MV 1.35X90X140 |
| 4 |
30012902 |
CH INFERIOR 2.0X500X761 BR400 |
| 4.1 |
30229001 |
RODIZIO GIRATORIO 4” (100MM) C/ PLACA 4091-101 |
| 4.1.1 |
30141001 |
PA SEXT ZB M8 X 16 |
| 4.1.2 |
30189001 |
PO SEXT ZB M8 CH 13 |
| 4.2 |
30221001 |
RODA CHAPA 16 10” (250MM) FURO 20MM 4000-250 |
| 4.2.1 |
30007801 |
ARRUELA LISA ZB 3/4”X40X2.0 (81 PC/KG) |
| 4.2.2 |
30021801 |
CONTRA-PINO 5/32 X 2” (198PC/KG) |

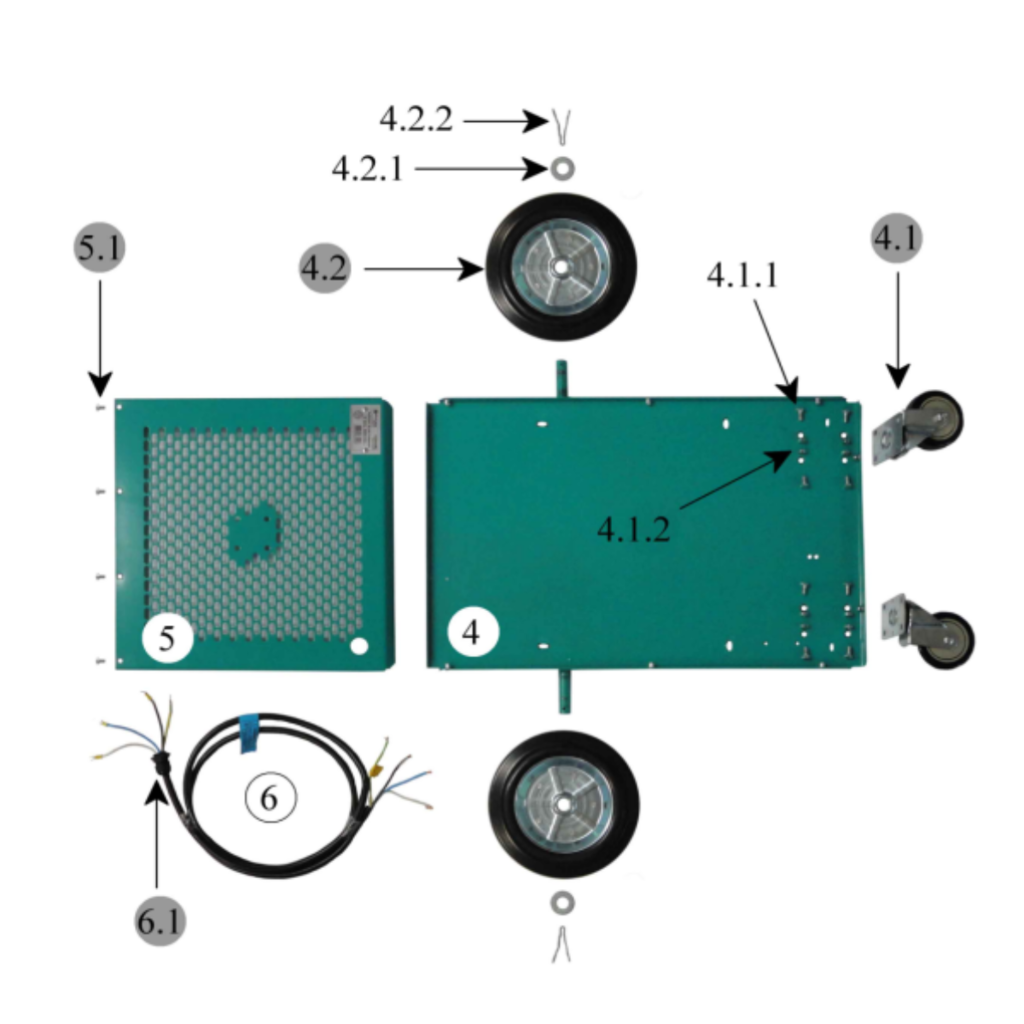

| 5 |
30017509 |
CH TRASEIRA 1.8X500X470 BR-400 |
| 5.1 |
30212001 |
REBITE FERRO RED. 6 X 30 (120 PC/KG) COLAR |
| 6 |
30011016 |
CABO PP FLEXIVEL 750V 4 X 6,0MM² C/ 01 VIA VD/AM 2,5MT |
| 6.1 |
30200001 |
PRENSA CABO SKINTOP ST PG-21 RAL 9005 BK |
| 7 |
30021216 |
CONJ TORRE SUPORTE TRANSF. E N.MOVEL BR 400 (AT) |
| 7.1 |
30043002 |
FERRO CANT 3/16 X 1.1/4” TRAV. N. MOV BR400/425 36,5cm |
| 7.1.1 |
30099602 |
PA MAQ CHATO M8 X 25 |
| 7.1.2 |
30006301 |
ARRUELA DE PRESSAO ZB 5/16” |
| 7.2 |
30043107 |
FERRO CHATO 3/16 X 1” PÉ TORRE NUC. MOV. BR400 19cm |
| 7.2.1 |
30142001 |
PA SEXT ZB M8 X 20 |
| 7.3 |
30043106 |
FERRO CHATO 3/16 X 1” PÉ TORRE TRAFO BR400 26cm 254gr |
| 7.4 |
30043105 |
FERRO CHATO 3/16 X 1” SUPORTE CANT TORRE INF BR400 |
| 7.5 |
30042510 |
FERRO CANT 3/16 X 1” TRAV. TORRE BR400 49.5cm 618gr |
| 7.6 |
30043006 |
FERRO CANT 3/16 X 1.1/4” TRAV SUP. TORRE BR400 37cm 837gr |
| 7.7 |
30043115 |
FERRO CHATO 3/16 X 1” SUPORTE CANT TORRE SUP BR400 |
| 7.8 |
30017004 |
CH SUPORTE PLACA DIODO BR400 1,80X40X290 |
| 7.9 |
30141001 |
PA SEXT ZB M8 X 16 |
| 7.10 |
30189001 |
PO SEXT ZB M8 CH 13 |
| 8 |
30283402 |
TRANSFORMADOR BR-400 |
| 8.1 |
30000701 |
ACO SILICIO (0.54 X 64) |
| 8.2 |
30042700 |
FERRO CANT 1/8 X 1.1/4” FECH. TRANSF. BR400 40,5cm 628gr |
| 8.3 |
30108623 |
BOBINA BR-400 PRIMARIA MOD. NOVO |
| 8.3.1 |
30000101 |
ABRACADEIRA NYLON FIO 150X3.8 CT-10 |
| 8.3.2 |
30045401 |
FIO ALUMINIO REC. MOLE NR 8 (3.26) |
| 8.3.3 |
30053001 |
FITA CREPE 16MM (ROLO=50METROS) |
| 8.3.4 |
30095101 |
NUCLEO TRANSF PRIMARIO BR-325/BR400 (R/01-0044) MOLDE 346 |
| 8.3.5 |
30144501 |
PAPEL ISOL TRAMAPEL CLASSE B 0.06 X 19MM - (1,1362GR/MT) |
| 8.3.6 |
30244010 |
SPAGUETE POL CLASSE F 155º 2KV 8MM BR - PÇ 90MM |
| 8.3.7 |
30244013 |
SPAGUETE POL CLASSE F 155º 2KV 6MM BR - PÇ 180MM |
| 8.3.8 |
30298311 |
VERNIZ IMP LACKTH 1319/17 HIDRO H |
| 8.4 |
30108624 |
BOBINA BR-400 SECUNDARIA MOD. NOVO |
| 8.4.1 |
30000104 |
ABRACADEIRA NYLON P/ FIO 150X7.6 CT-065 |
| 8.4.2 |
30053001 |
FITA CREPE 16MM (ROLO=50METROS) |
| 8.4.3 |
30095201 |
NUCLEO TRANSF PRI/S300 SEC 300/BR325/400 MOLDE356 |
| 8.4.4 |
30144510 |
PAPEL ISOL TRAMAPEL CLASSE B 0.06 X 25MM - (1,495GR/MT) |
| 8.4.5 |
30149001 |
PERFIL ALUMINIO 13034 (4.8 X 7.5) |
| 8.4.6 |
30244010 |
SPAGUETE POL CLASSE F 155º 2KV 8MM BR - PÇ 90MM |
| 8.4.7 |
30298311 |
VERNIZ IMP LACKTH 1319/17 HIDRO H |
| 8.5 |
30117001 |
PA SEXT ZB 5/16 X 3.1/2” |
| 8.6 |
30184001 |
PO SEXT ZB 5/16 CH 1/2” |
| 9 |
30094805 |
NUCLEO MOVEL BR-400 COM BUCHA E HASTE ROSQUEADA |
| 9.1 |
30009001 |
BUCHA 1”28MM ROSCA 5/8” POL BR-425/450 |
| 9.2 |
30065504 |
HASTE 5/8” ZB 3/8”-75MM X 5/8”-160MM (BR-400/425/450) CHANF |
| 9.3 |
30078502 |
MANIVELA P/SOLDADOR C/BUCHA ACO 3282 M8 CENTERJET |
| 9.4 |
30000502 |
ACO SILICIO (0.54 X 42) |
| 9.5 |
30000701 |
ACO SILICIO (0.54 X 64) |
| 9.6 |
30014800 |
CH MANIVELA BR's 2,0 X 60 X 140 |
| 9.7 |
30042550 |
FERRO CANT 1/8 X 1.1/2” SUPORTE BUCHA N. MOVEL 4,7cm 88,5gr |
| 9.8 |
30043401 |
FERRO REDONDO 1/4”MT |
| 9.9 |
30063501 |
GRAXA ESSO MULTIPORPULSE GRASSE DIVERSOS |
| 10 |
30008619 |
BOBINA BR-400 CONTRA NUCLEO |
| 10.1 |
30000104 |
ABRACADEIRA NYLON P/ FIO 150X7.6 CT-065 |
| 10.2 |
30053001 |
FITA CREPE 16MM (ROLO=50METROS) |
| 10.3 |
30096002 |
NUCLEO TRANSF REATANCIA BR-400 MOLDE 347 |
| 10.4 |
30144510 |
PAPEL ISOL TRAMAPEL CLASSE B 0.06 X 25MM - (1,495GR/MT) |
| 10.5 |
30149001 |
PERFIL ALUMINIO 13034 (4.8 X 7.5) |
| 10.6 |
30244010 |
SPAGUETE POL CLASSE F 155º 2KV 8MM BR - PÇ 90MM |
| 10.7 |
30298311 |
VERNIZ IMP LACKTH 1319/17 HIDRO H |
| 11 |
30021508 |
CONTRA NUCLEO BR-400 COMPLETO SEM BOBINAS |
| 11.1 |
30000401 |
ACO SILICIO (0.54 X 32) |
| 11.2 |
30007001 |
ARRUELA LISA ZB 5/16”X32X2.0 (70 PC/KG) |
| 11.3 |
30013100 |
CH FIXAÇAO LATERAL BOB. C. NUCLEO BR's 1,8X25,6X70 |
| 11.4 |
30017901 |
CHAPA FENOLITE 5,0MM X 51 X 130MM (47,5 GR/PÇ) |
| 11.5 |
30042508 |
FERRO CANT 1/8 X 1” GUIA NUCLEO MOVEL BR400 34,2cm 380gr |
| 11.6 |
30042702 |
FERRO CANT 1/8 X 1.1/4” SUPOR PARAF C. NUCLEO BR 4,1cm 64gr |
| 11.7 |
30071101 |
ISOPRESS 0.50MM 550GR/M² 0.7kg/CH |
| 11.8 |
30126001 |
PA SEXT ZB 1/4 X 4.1/2” |
| 11.9 |
30190001 |
PO SEXT ZB 1/4 CH 7/16” NYLON |
| 11.10 |
30285006 |
TUBO FENOLITE 6,5MM X 8,5MM PÇ 90mm |
| 12 |
30071317 |
KIT PLACA BORNE 9 PINOS MERKLE/BALMER (AT) |
| 12.1 |
30007402 |
ARRUELA LISA ZB 1/4X14X1,2 |
| 12.2 |
30017013 |
CH SUPORTE CONEC. ALT VOLTAGEM (BORNE) BR400 1,35X67X152 |
| 12.3 |
30021412 |
CONJ PLACA BORNE DE ENTRADA 09 PINOS M.O |
| 12.4 |
30051201 |
FITA LATAO MD 36X0.60MM |
| 12.5 |
30118001 |
PA SEXT ZB M6 X 25 |
| 12.6 |
30121001 |
PA SEXT ZB M6 X 12 |
| 12.7 |
30162001 |
PLACA BORNE BBS-09 (09 PINOS) MOLDE 27 |
| 12.8 |
30188101 |
PO SEXT ZB M6 CH 10 |
| 12.9 |
30275001 |
TINTA ESMALTE SINT. INDUSTRIAL PRETA S/B (3.6 LT) |
| 13 |
30094102 |
MOTOR 1/20 3150RPM C/HELICE 12”(BR400) |
| 14 |
30021001 |
CONJ MONT. PTS42/4/100X300+R BR425 |
| 15 |
30010201 |
CABO FLEXIVEL 450/750V 50MM |
| 16 |
30054001 |
FITA POLIESTER AMPERAGEM MENOR BR-325/BR-400 |
| 17 |
30093201 |
MOLA AR. 0,5 X 7 X 84 |
